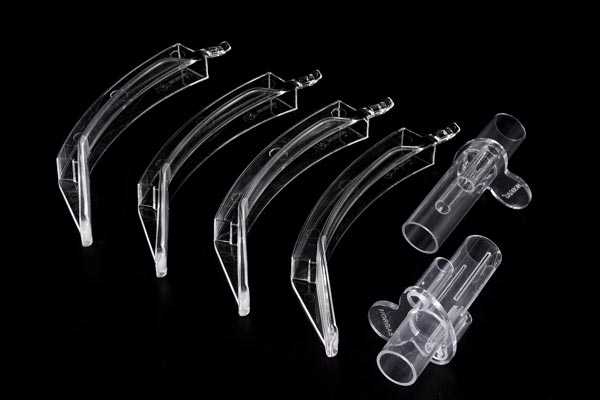

Medical injection-molded products, due to their high precision requirements and special materials, are prone to deformation during processing caused by improper process parameters, mold design flaws, or material characteristics, severely impacting product quality and safety. Below is a systematic approach addressing the issue from cause analysis, solutions, and preventive measures:

I. In-Depth Analysis of Deformation Causes

1. Uncontrolled Process Parameters: Excessive injection speed, insufficient holding pressure, or insufficient cooling time lead to uneven material shrinkage, triggering internal stress deformation.
2. Mold Design Flaws: Irrational runner layout, uneven cooling systems, or imbalanced ejection structures cause localized temperature differences or excessive demolding resistance.
3. Material Characteristics: High-crystallinity materials (e.g., PP, PE) exhibit high shrinkage rates, or insufficient material drying leads to hydrolysis, exacerbating deformation risks.
4. Environmental Interference: Fluctuating workshop temperatures or imprecise mold temperature control affect material cooling consistency.

II. Targeted Solutions

1. Optimize Process Parameters
   • Adjust injection speed and holding pressure: Use multi-stage injection ("slow-fast-slow") to reduce melt flow resistance; holding pressure should cover material shrinkage (typically 50%-80% of injection pressure).
   • Extend cooling time: Set cooling time based on product wall thickness (e.g., 15-20 seconds for 2mm walls) to ensure full material solidification.
   • Reduce barrel temperature: Avoid material overheating and decomposition while minimizing melt viscosity fluctuations.
2. Improve Mold Design
   • Optimize runner and gate design: Use balanced runner layouts to ensure uniform melt filling; position gates away from weak areas (e.g., thin walls, corners).
   • Enhance cooling systems: Add cooling channels in high-deformation zones or adopt conformal cooling to minimize mold temperature differences (±2°C or less).
   • Adjust ejection structures: Increase ejector pins or switch to stripper plates to reduce localized stress during demolding.
3. Material Preprocessing and Selection
   • Strict drying protocols: Dry medical-grade materials (e.g., PPSU, PEEK) at 120°C for 4-6 hours to reduce moisture content below 0.02%.
   • Choose low-shrinkage materials: Opt for modified PC or LCP with shrinkage rates below 0.3% to lower deformation risks.
4. Environmental Control and Post-Processing
   • Stabilize workshop conditions: Maintain temperature at 23±2°C and humidity ≤50% to minimize environmental impacts on cooling.
   • Annealing treatment: Apply heat treatment (e.g., 80°C for 2 hours) to eliminate internal stress in high-stress products.

III. Preventive Measures: Avoid Deformation from the Source

1. Simulation analysis first: Use Moldflow software to simulate filling and cooling processes, identifying deformation risks in advance.
2. Standardize operating procedures: Develop process parameter cards to define critical ranges for injection speed, holding time, etc.
3. Regular mold maintenance: Inspect mold cavities for wear and cooling channel blockages every 5,000 cycles, repairing issues promptly.

FAQ

Q1: Can deformed medical injection-molded products be repaired through secondary processing?
A: Minor deformations can be corrected via hot forming or mechanical reshaping, provided material properties (e.g., non-toxicity, chemical resistance) remain intact. Severely deformed products should be scrapped to avoid safety risks.

Q2: How to distinguish whether deformation is caused by process issues or mold defects?
A: If deformation occurs consistently in the same locations across batches produced by the same mold, it likely stems from mold design flaws. Random deformation linked to parameter fluctuations indicates process optimization needs.

Q3: Why are stringent drying requirements critical for medical injection molding materials?
A: Medical products must meet biocompatibility standards. Excess moisture causes hydrolysis, generating harmful substances and exacerbating uneven shrinkage, leading to deformation.
